SAB Avio Landing Gear Legs (3 Legs)

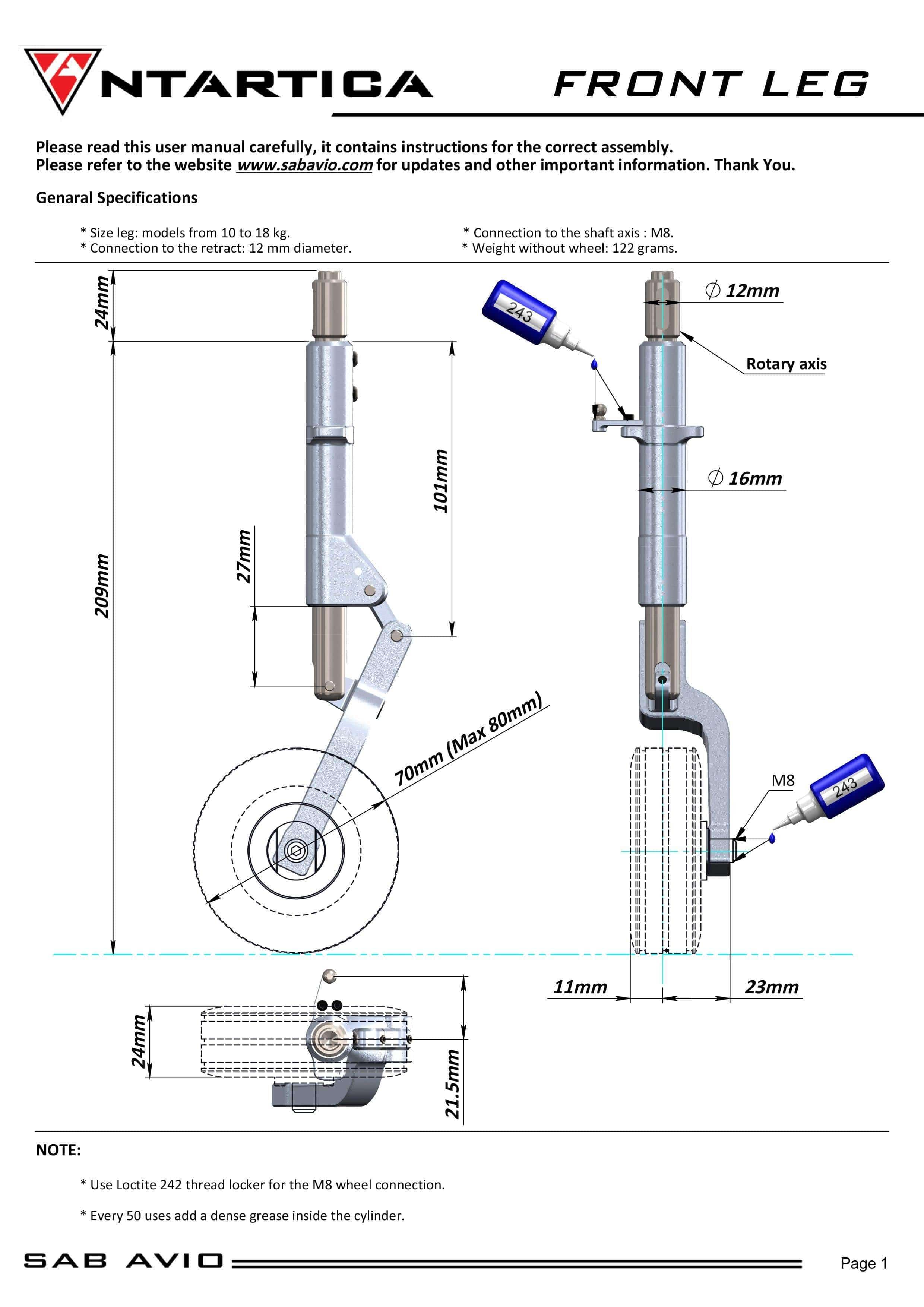

Front Leg
Ā
General Specifications
Ā
* Size leg: models from 10 to 18 kg.
* Connection to the retract: 12 mm diameter.
Ā
NOTE:
* Use Loctite 242 thread locker for the M8 wheel connection. * Every 50 uses add a dense grease inside the cylinder.
* Connection to the shaft axis : M8. * Weight without wheel: 122 grams.Ā
Ā

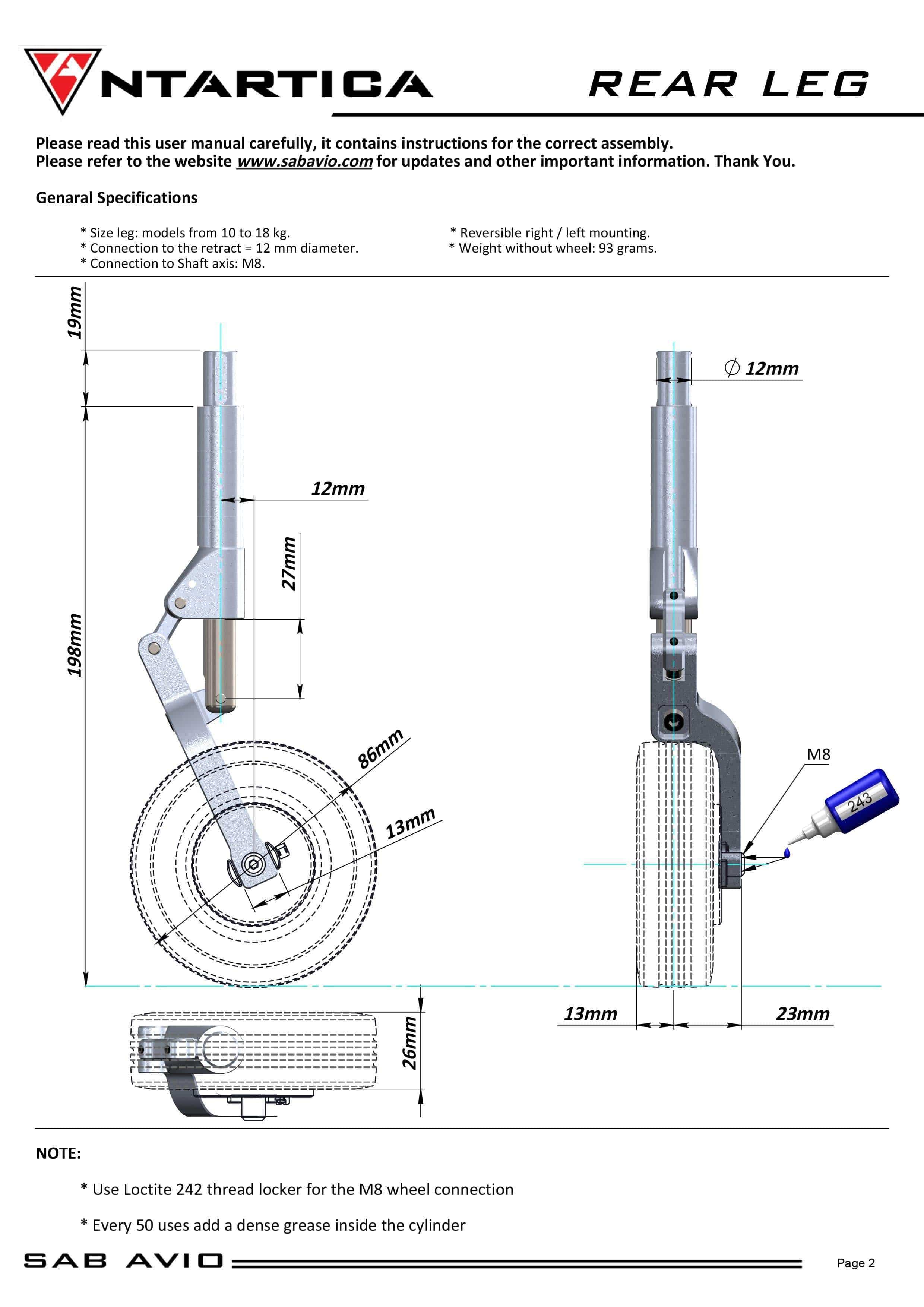

Rear Leg
Ā
General Specifications
Ā
* Size leg: models from 10 to 18 kg.
* Connection to the retract = 12 mm diameter.
* Connection to Shaft axis: M8.
Ā
NOTE:
* Use Loctite 242 thread locker for the M8 wheel connection * Every 50 uses add a dense grease inside the cylinder
* Reversible right / left mounting. * Weight without wheel: 93 grams.Ā
