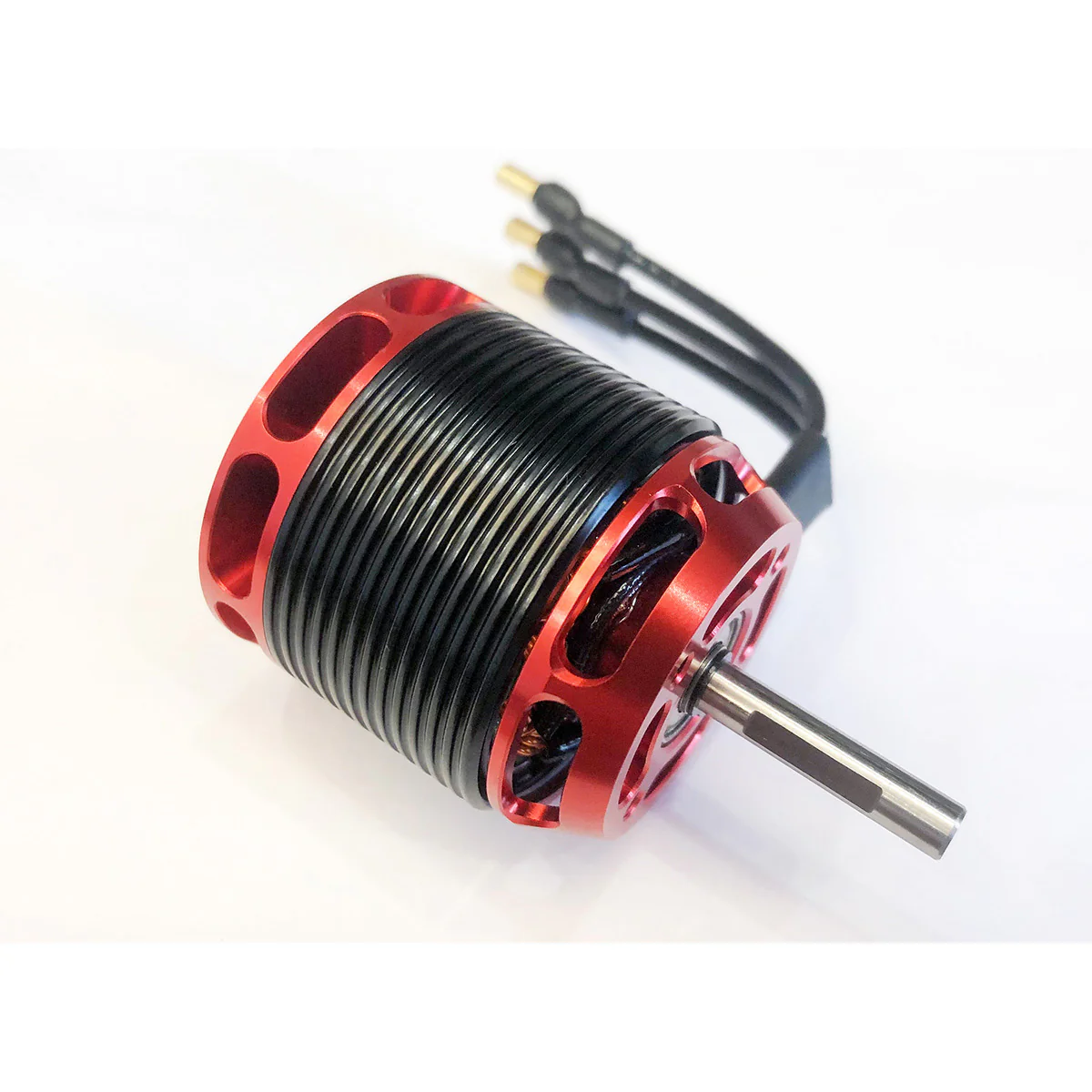

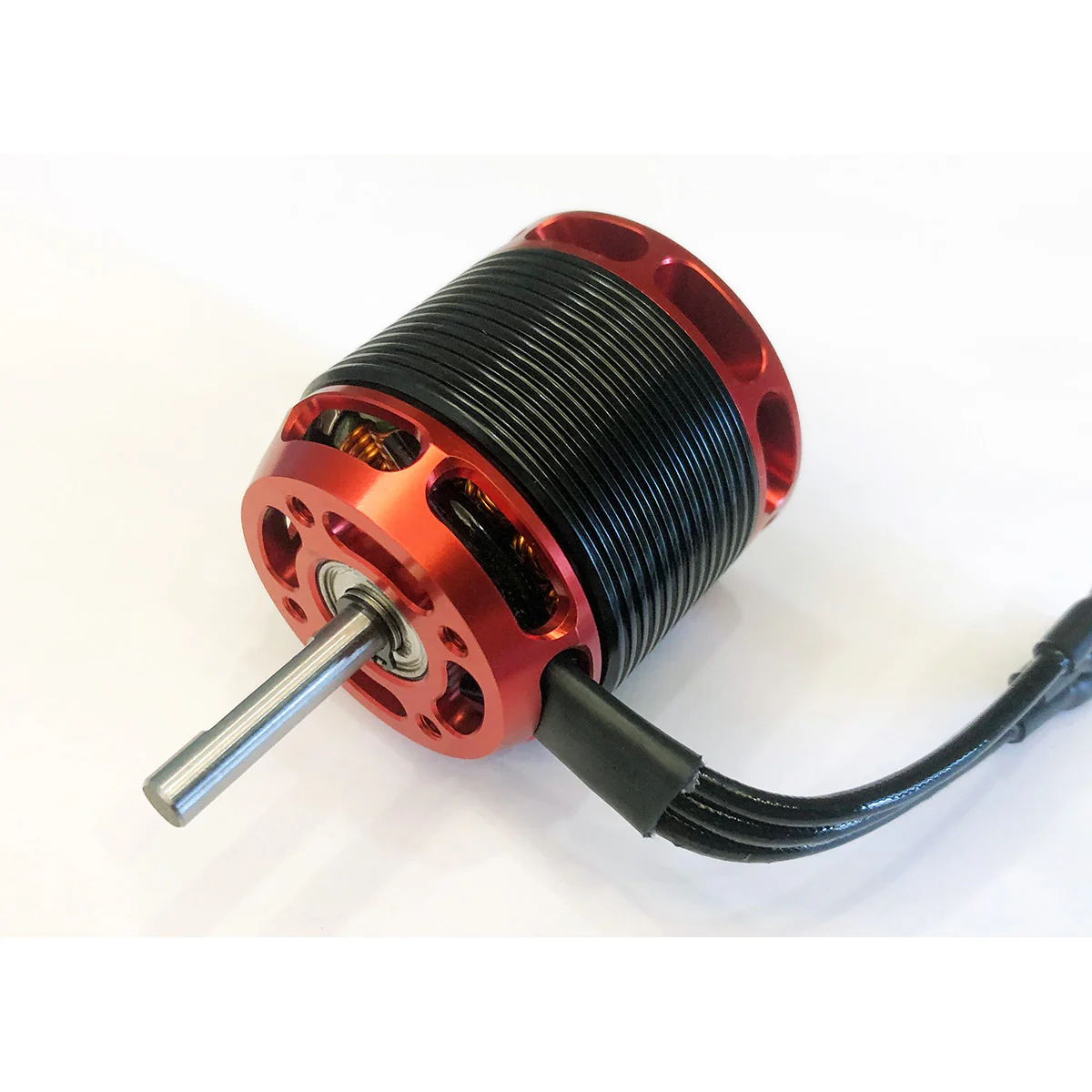

Combove Type 3220-1000KV 24mm Shaft Brushless Motor

Product image 1
Product image 2

Combove Type 3220-1000KV 24mm Shaft Brushless Motor

Combove Type 3220-1000KV 24mm Shaft Brushless Motor

Specification:

  • Motor shaft diameter：5mm
  • Motor shaft length：24mm
  • Stator Diameter：32mm
  • Stator Thickness：20mn
  • No. of Stator Arms：8mm
  • Number of slots/poles: 10N/10P
  • Motor Wind: 5+3 Turn Delta
  • Motor wire diameter：0.86mm
  • Motor Kv: 1000Kv
  • Outside Diameter: 40.8 mm
  • Shaft Diameter: 5 mm
  • Body Length: 54.5 mm
  • Overall Shaft Length: 90 mm
  • Weight: 172 grams
  • Max Lipo Cell: 6s
  • Max Continuous Current: 105 Amp
  • Max Peak Current: 130 Amps (5 seconds)
  • Max Continuous Power: 2260W
  • Max Peak Power: 2920W (5 seconds)
  • Motor Timing: 5deg~12deg
  • Drive Frequency: 8kHz~32khz
$110.00
Combove Type 3220-1000KV 24mm Shaft Brushless Motor—
$110.00

Product Information

Shipping & Returns

Description

Specification:

  • Motor shaft diameter：5mm
  • Motor shaft length：24mm
  • Stator Diameter：32mm
  • Stator Thickness：20mn
  • No. of Stator Arms：8mm
  • Number of slots/poles: 10N/10P
  • Motor Wind: 5+3 Turn Delta
  • Motor wire diameter：0.86mm
  • Motor Kv: 1000Kv
  • Outside Diameter: 40.8 mm
  • Shaft Diameter: 5 mm
  • Body Length: 54.5 mm
  • Overall Shaft Length: 90 mm
  • Weight: 172 grams
  • Max Lipo Cell: 6s
  • Max Continuous Current: 105 Amp
  • Max Peak Current: 130 Amps (5 seconds)
  • Max Continuous Power: 2260W
  • Max Peak Power: 2920W (5 seconds)
  • Motor Timing: 5deg~12deg
  • Drive Frequency: 8kHz~32khz
