Features:
14 Pole 12 Slot hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency
Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency.
Japaneses NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.

Motor Specifications :

Motor	KOMODO118 2208-2500
- KV (RPM/Volt)	2500 kv
- No-load Current(@10v)	1.5A
- Watt	270W
- Battery	2-4S
- Resistance	0.06 ohm
- Max Current	25A
- Slot/Pole	12S14P
- Motor Size	Ø 28 * 23mm
- Stator Size	2204
- Shaft/extend Length (mm)	Ø 2.3 * 14mm
- Weight oz (gr)	13.93 oz (39.5 gr)

*** Only recommended for KOMODO 118 2800kv

Axial UTB18 Furitek

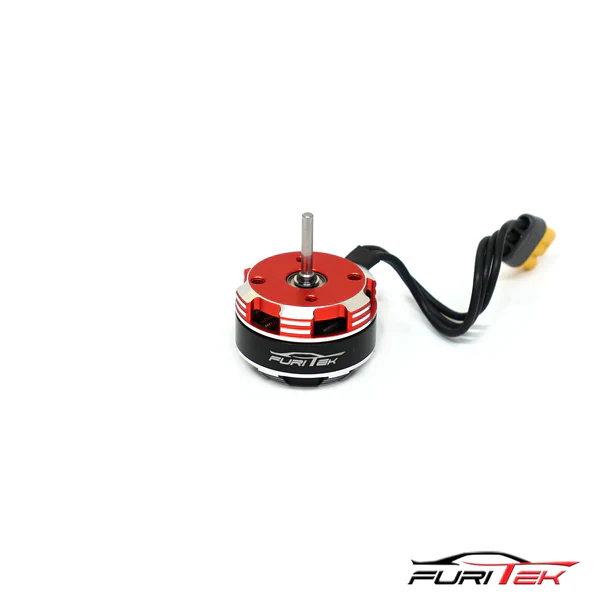

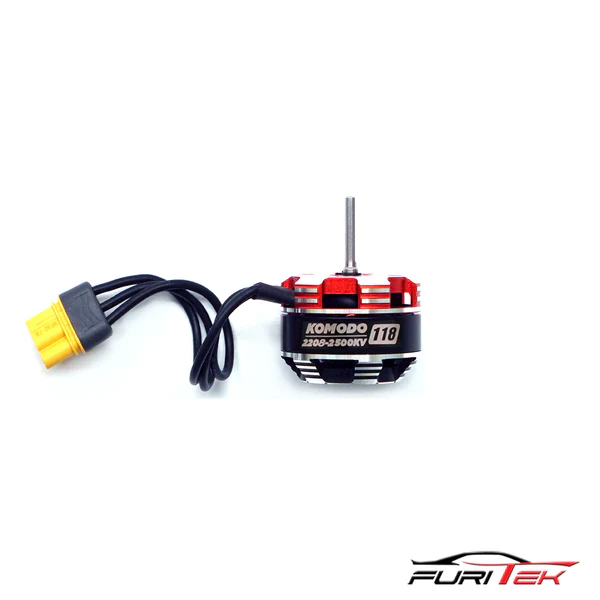

FURITEK KOMODO 2208 UTB18 BRUSHLESS MOTOR
